Puff · Kids Karts Series
P125

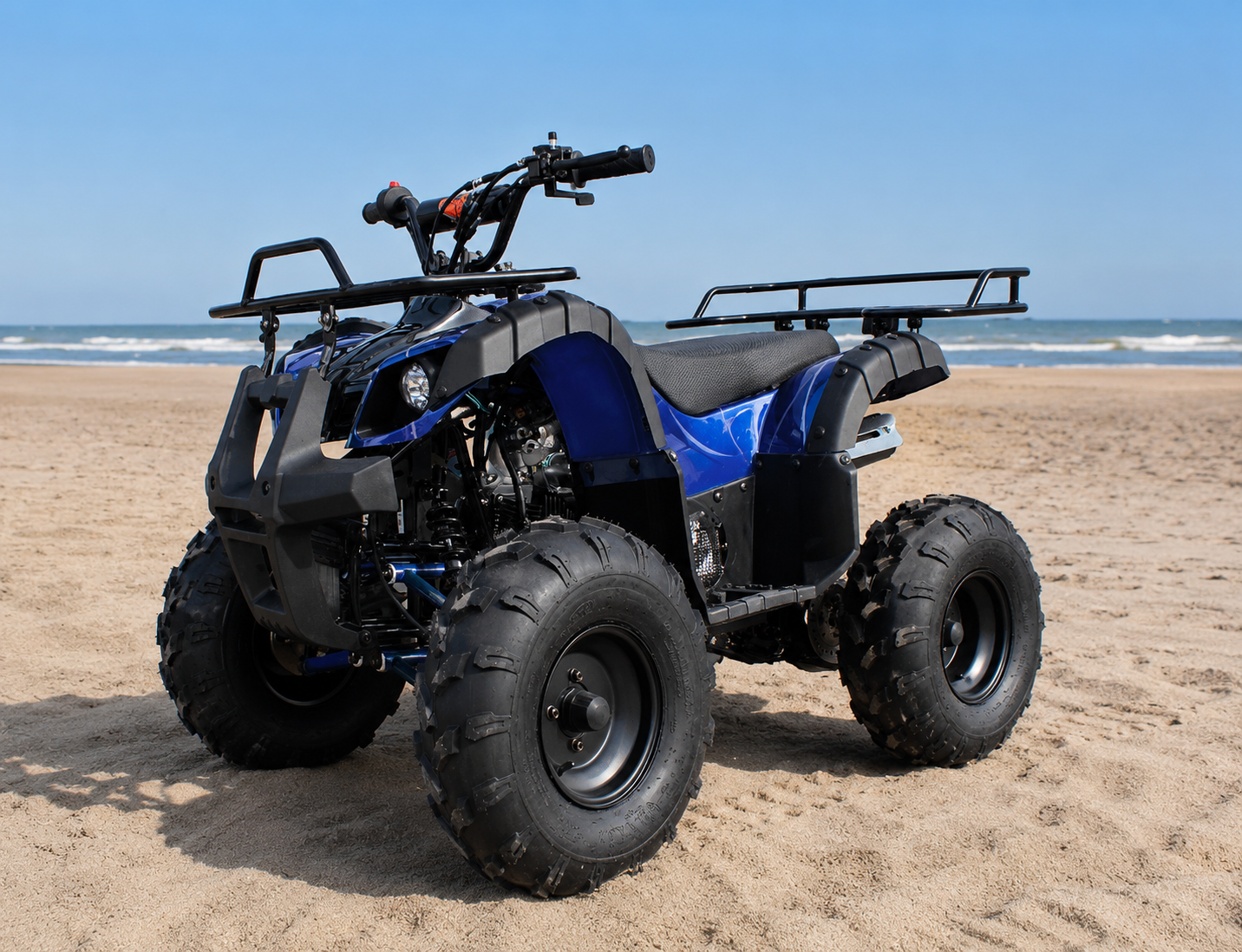

125cc Youth All-Terrain Vehicle
The Puff P125 is a powerful youth ATV designed for riders ready to move beyond entry-level models. Equipped with a reliable 125cc four-stroke engine, automatic clutch, electric start, and reverse gear, it delivers a confident riding experience for recreational off-road use while remaining approachable for younger riders under adult supervision.
Key Specs
- Engine125cc 4-Stroke Single Cylinder
- TransmissionAutomatic Clutch + Reverse
- Starting SystemElectric Start
- Top Speed34 mph
- Fuel Tank2 L
- BrakesFront Drum / Rear Hydraulic Disc
Dimensions
| Vehicle Dimensions | 1470 × 950 × 960 mm |
|---|---|
| Wheelbase | 935 mm |
| Ground Clearance | 120 mm |
| Turning Radius | 9.2 ft (2.8 m) |
| Seating | 1 Rider |
Performance
| Engine | 125cc Single-Cylinder, 4-Stroke, Air-Cooled |
|---|---|
| Maximum Power | 6.0 kW @ 7,500 rpm |
| Maximum Torque | 8.0 Nm @ 5,500–6,000 rpm |
| Starting System | Electric Start |
| Transmission | Forward / Neutral / Reverse |
| Clutch | Automatic Centrifugal Clutch |
| Fuel System | Carburetor |
| Fuel Tank Capacity | 2 L |
| Top Speed | 34 mph (55 km/h) |
| Climbing Capacity | 20° |
| Drive System | Chain Drive |
Suspension & Brakes
| Front Suspension | Independent Dual A-Arm |
|---|---|
| Rear Suspension | Swingarm |
| Front Brake | Drum Brake |
| Rear Brake | Hydraulic Disc Brake |
Wheels & Tires
| Front Tires | 19 × 7-8 |
|---|---|
| Rear Tires | 18 × 9.5-8 |
Weight & Capacity
| Curb Weight | 298 lbs (135 kg) |
|---|---|
| Maximum Load Capacity | 331 lbs (150 kg) |
